| Home |
| Card | ?????? |
| RTC software | IMPCLOCK.zip |
| " " | Displays "CLOCK V2.1A IMPERIAL INT'L CO. NOV 1985" |
| Card | ?????? |
| RTC software | RTC.EXE |
| " " | Looking for _8167 class chip, 16 I/O ports, at base port of either 2C0 or 2A0 or 280 (source: Maelgrum at the VCF) |
| Card | CSCA |
| Note | There is a single program for the clock supplied with this card - RTC.EXE The command RTC /1 is put into the AUTOEXEC.BAT file. The /1 will cause the RTC program to read the date/time from the RTC card and set it into DOS' date/time. Should the RTC's date/time become incorrect, the command RTC /2 is entered at the DOS prompt. The RTC program will then ask the user to input the current date/time then it will update the date/time on the RTC card. |
| RTC hardware | A ???? chip that sits at the base I/O port of either 240 or 340 (source: user's manual) |
| RTC software | User manual quotes RTC.EXE, but I do not have an RTC.EXE for the base I/O port of either 240 or 340. Something else that is expected to work is TIMER.COM version 1.0, found below in the 'PC TIMER' section. |
| Manual | User's Manual (includes usage notes for a program named RTC.EXE) |
| Card | BOCA I/O-XT |
| RTC software | CLOCKBRI.ZIP |

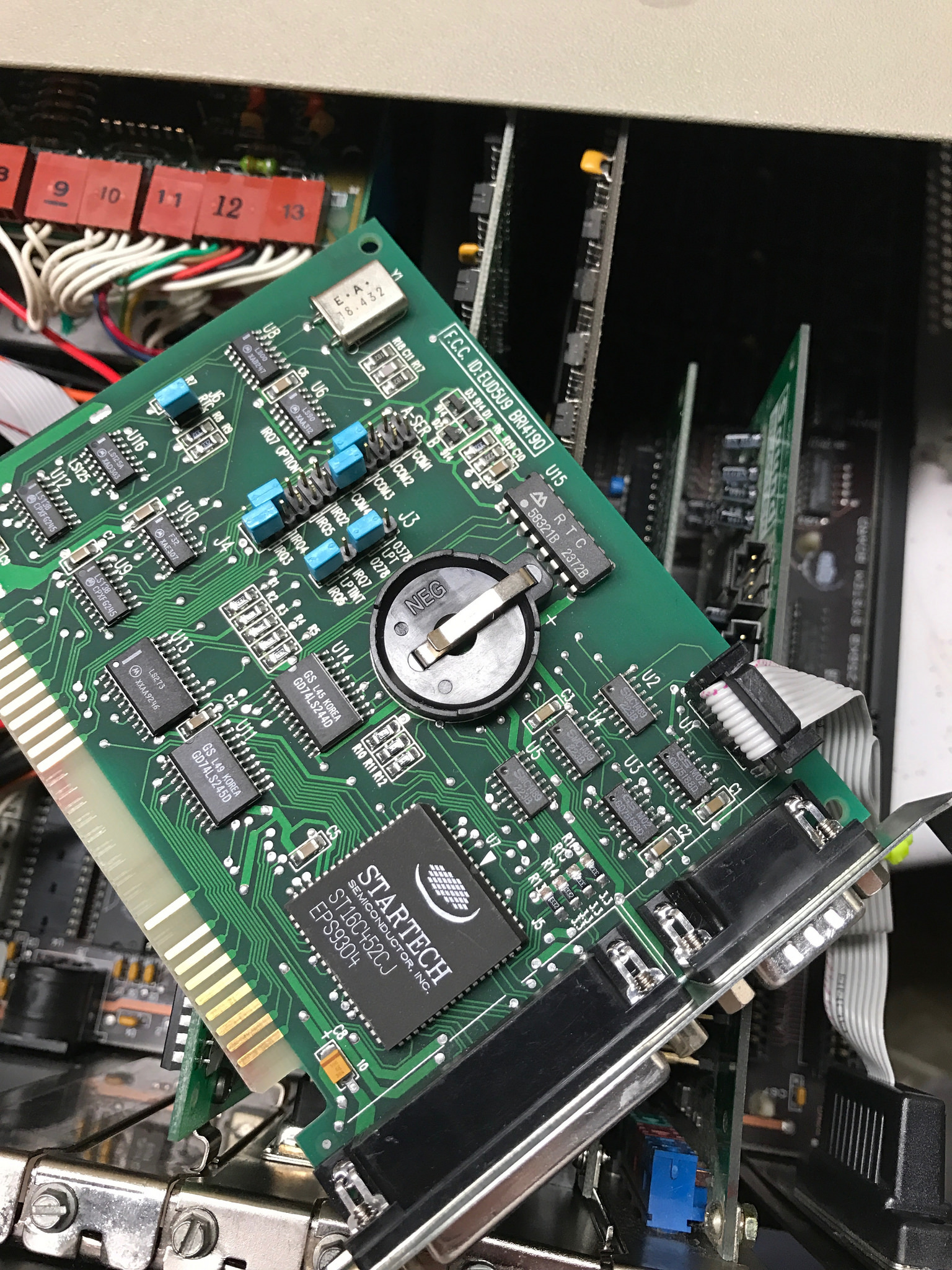

| " " | Known to work on the Boca Research card shown at here (RTC chip is a RTC-58321) |
| Card | MBI-MIO |
| RTC software | SETCLOCK.COM and GETCLOCK.COM |
| " " | Looking for _8167 class chip, 32 I/O ports, at base port of either 2C0 or 340 (source: Maelgrum at the VCF) |
| Card | DIO-200X |
| RTC hardware | MM58167A chip, using I/O ports of range 2C0 - 2DF (source: page 2-2 of user's manual) |
| RTC software | SETCLOCK.COM and GETCLOCK.COM |
| " " | Looking for _8167 class chip, 32 I/O ports, at base port of either 2C0 or 340 (source: Maelgrum at the VCF) |
| Manual | User's Manual (includes usage notes for SETCLOCK.COM and GETCLOCK.COM) |
| Card | Unknown |
| RTC software | HXPCLOCK.COM (source: el_VR at the VCF) |
| " " | Looking for _8167 class chip, 32 I/O ports, at base port of 2C0 (source: Maelgrum at the VCF) |
| Card | EV-170 |
| Note | The EV-170A and EV-170B are not the same as the EV-170. They have no clock circuitry. |
| RTC software | download |
| " " | Looking for _8167 class chip, 32 I/O ports, at base port of 2C0 (source: Maelgrum at the VCF) |
| Card | Hyper-Port |
| Note | With this card, Hypertec supply a device driver named CLOCK.SYS This is loaded onto the hard drive and a reference is made to it in CONFIG.SYS so that it is loaded in memory each time the computer is powered on. With this method, everything is automatic - using the date and time commands of DOS will automatically update the date/time on the Hyper-Port card. |
| RTC software | CLOCK.SYS |
| " " | Technical info - I/O port usage (source: Maelgrum at the VCF) |
| Card | PLB85 |
| RTC software | Download |
| Computer | M24 |
| RTC software | Download (source: Simtel MS-DOS Collection) |

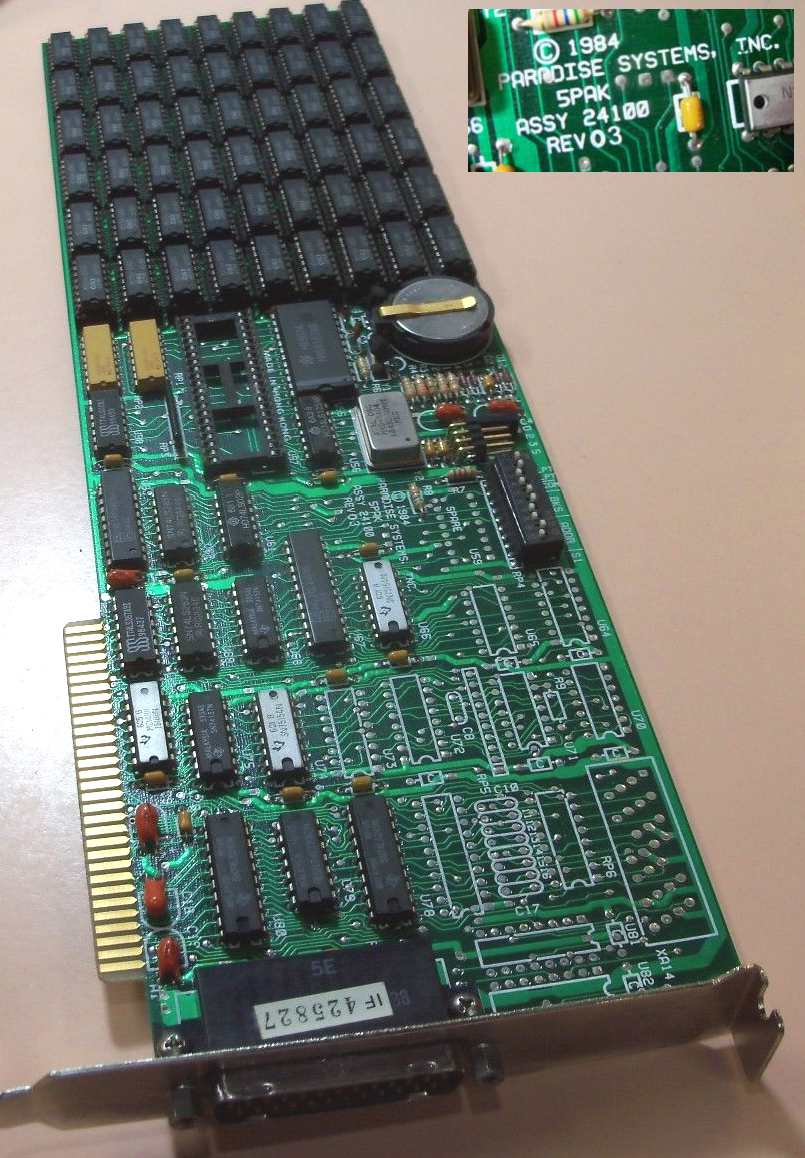

| Card | 5-Pack (5PAK) |
| RTC software | Download (source: 6885P5H at the VCF) |
| Comment | Type "CLSET HELP" for instructions on using CLSET.COM |
| Photo | Photo |
| Card | GW202 |
| RTC software | Use TIMER.COM version 1.3, found above in the 'PC TIMER' section. |
| Manual | User's Manual (includes usage notes for TIMER.COM) |
| Card | Time Spectrum 384 |
| Note | Not the same as the 384L |
| RTC software | CLOCK.COM for the 384 card |
| " " | Technical info - I/O port usage (source: Maelgrum at the VCF) |
| Card | Time Spectrum 384L |
| Note | Not the same as the 384 |
| RTC software | CLOCK.COM for the 384L card |
| QuadMaster | (1983) (usage notes included) | |
| QuadMaster II for Quadcards | (version 1.02, 1984) (usage notes included) | |
| QuadMaster III for Quadcards | (version 2.01, 1985) (usage notes included) | |
| QuadMaster III for Quadcards | (version 3.04, 1985) (usage notes included) (manual is here) | (software source: Malc at the VCF) |
| QuadMaster III for Quadcards | (version 3.08, 1986) (usage notes included) (photo) | (software source: Rolf at the VCF) |
| Computer | Samtron 88S |
| Note | The Samtron 88S is an XT clone that was made by Samsung. An RTC is built into the motherboard. |
| RTC software | TIMER.COM version 1.2, found above in the 'PC TIMER' section, is known to work. |
| Card | Maximizer |
| RTC software | STIME and XTIME programs (usage described in the USAGE.TXT file within the ZIP file) |
| Card | Tecmar Captain |
| RTC hardware | A 58167 chip that sits at the base I/O port of either 37D or 27D (source: user's manual) |
| RTC software | TECMAR_CLOCK_UTILITIES.ZIP |
| " " | Technical info - I/O port usage (source: Maelgrum at the VCF) |
| Manual | Documentation (includes usage notes for RTC software) |
| Computer | Laser XT |
| Note | Laser XT/3 is not the same as Laser XT |
| RTC software | SETCLOCK and GETCLOCK programs |
| " " | Technical info - I/O port usage (source: Maelgrum at the VCF) |
